Wireless Tank Level System Features

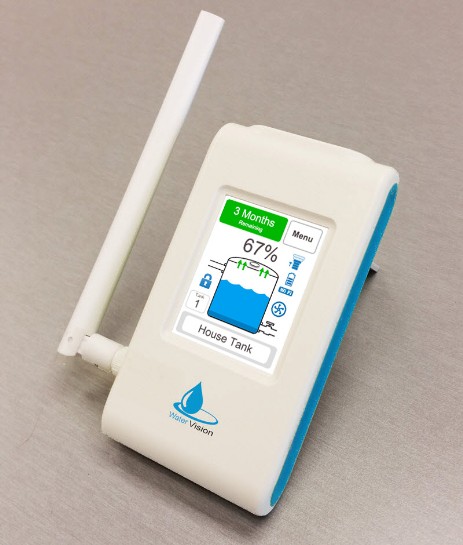

Touch Colour Display

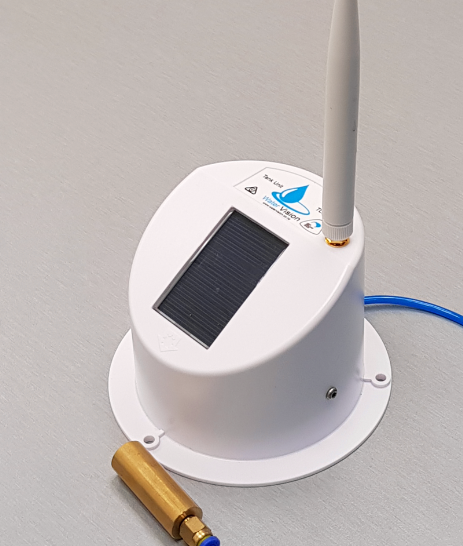

Tank Unit

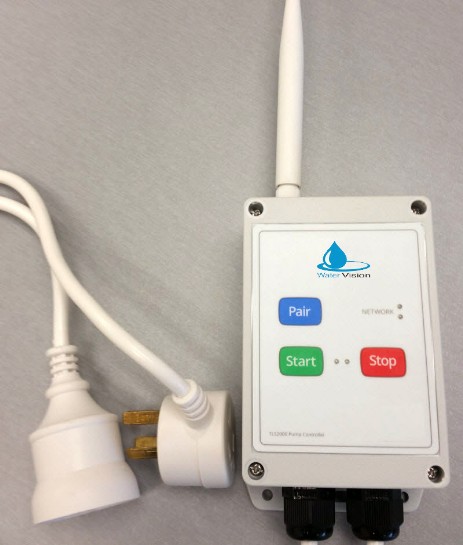

Pump/Device Control Unit

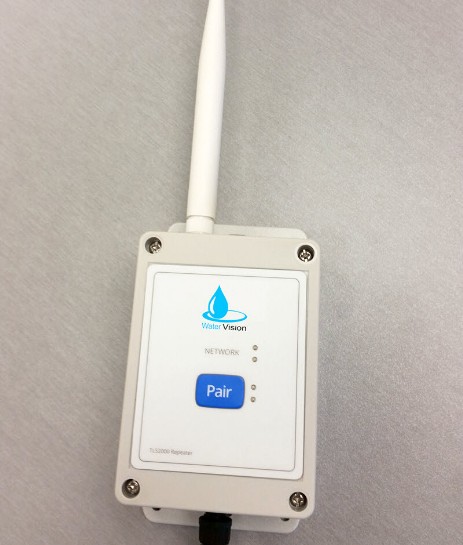

Active Repeater

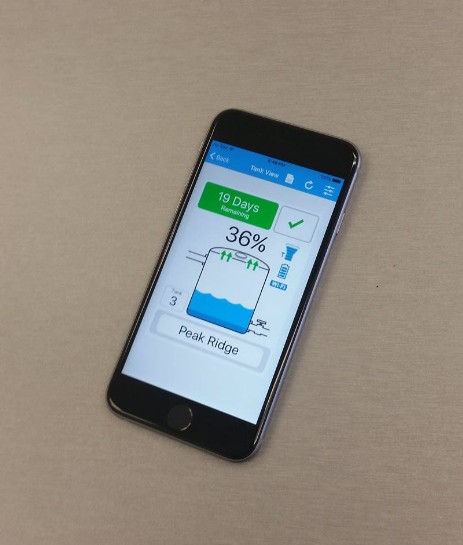

Mobile App
Water Vision is the only system that offers all of these features:
- Mobile Apps for Android/Apple with alert notifications
- Wall mount display or desktop display with over the air updates
- Email notifications of abnormal status
- Tank dashboard shows all tank levels at once (16 tanks)
- Multiple pump controllers (up to 12 pumps)
- Naming of tanks and pumps, using a touch screen keyboard (fast and easy)
- Leak detected in as little as 5 minutes
- Sudden water loss sensitivity setting for each tank
- Number of days remaining alert settable for each tank
- Low/high level alert settable for each tank
- Optional simple connection to Wi-Fi router (SSID/Password or WPS)
- Near unlimited range using active repeaters, active tanks and pump controllers
- Mesh network so externally powered tanks and pump controllers are also active repeaters
- Only requires a 5mm hole near the hatch to access the tank
- Tank units can be mounted up to 20m away from the tank (with extension)
- Enclosed tank monitor solar panel is angled for 60% better energy collection
- No electronics in the water, extends the life of the unit
- The tank module is coloured white to repel harmful rays and to extend its life outdoors
- Designed and manufactured in New Zealand to AS9100 and ISO14001:2015 standards
- Two year warranty
When it comes to equipment that operates outdoors, you need the best. Don't settle for anything less!
Key features:
- The next generation when it comes to accuracy, quality and reliability
- Know exactly how much water you have left and how many days remaining based on your average usage
- Know when you have a leak or have left something running (sprinkler, pipe burst, etc.)
- A significant leak can generate an alert in as little as 5 minutes
- Sudden loss sensitivity setting for each tank
- Trend indicator shows whether your water level is going up or down
- A touch colour display that can be hand held or placed on a desktop
- Child lock (protects settings while still allowing tank information to be viewed)
- Built in Wi-Fi with worldwide cloud access and mobile apps for both Android and Apple iPhone/iPad
- Can be used with or without the mobile app subscription (mobile apps are an extension to the systems own touch colour display)
- No cell phone signal is required, allowing the system to be used in remote locations
- Wireless solar powered tank modules
- No batteries need to be replaced
- A fully charged solar powered tank module can run for months with no sunlight
- Up to 16 tanks and up to 12 pumps, irrigation systems and devices can be connected to one system
- User settable names for each tank, pump or irrigation system
- User settable days remaining alert and percentage remaining alert for each tank
- User settable filter replace/clean timer for each tank
- Signal level and battery level/charge indicators for each tank
- Signal level indicators for each pump
- Tank dashboard allows the viewing of all 16 tanks at once
- Active signal repeaters that can be solar or mains powered
- Simple DIY installation
Mobile features:
- Built in Wi-Fi with simple single button WPS connection or SSID selection from a list
- Apps for Android mobile/tablet and Apple iPhone/iPad
- View the tank level, days remaining and system status of all of the tanks in a list view or single tank view
- View the current state of your pumps, irrigation systems and devices
- Set the required state of your pumps, irrigation systems and devices
- Enable/disable the irrigation start times with a single switch
- See your systems status and alerts
- Email notifications of system alerts
- Connect up to 10 devices on the one subscription
- The system can still be used without the mobile subscription

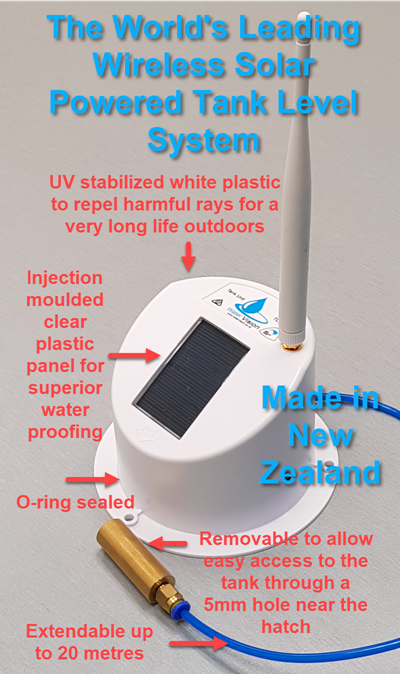

Tank features:
- Wireless and solar powered
- Enclosed solar panel is angled for 60 percent better solar energy collection and water proofing
- Only requires a 5mm hole near the hatch to access the tank
- Can be mounted up to 20m away from the tank (with extension)
- Measures fluid levels up to 5 metres
- Designed to handle continuous outdoor use
- Uses a depth sensor, so installation is simple and requires no setup
- No electronics in the water, for better reliability
- Automatically learns the maximum water level the tank can hold
- Up to 16 tanks can be used on one system
Pump features:
- Pumps can be wirelessly controlled based on tank levels
- Automatically start a pump when a destination tank gets below a set level
- Automatically start a pump when the source tank gets above a set level
- Automatically stop a pump if the destination is at the required level or if the source tank or pond gets too low
- User settable pump on period can be used to stop pumps from running during the night
- Set a maximum run time for each pump, to avoid losing a large amount of water if a pipe has burst
- Pumps can be started and stopped from the pump controller, the touch colour display or the mobile apps
- Loss of signal safety shutoff
- Up to 12 pumps can be controlled on one system
Device features:
- Control anything wirelessly that requires mains power or 12/24 volts
- Control your hot water cylinder at a Bach (electrician installation required)
- Devices can be controlled from your touch colour display or mobile app
- Up to 12 devices can be controlled on one system
Irrigation features:
- Irrigation systems can be controlled wirelessly with 4 daily start times and a run time (cloud access required)
- Each start time can be enabled or disabled
- Master override control for times when irrigation is not required
- Irrigation systems can be automatically stopped when a tank or pond is too low
- Irrigation systems can be started and stopped from the irrigation controller, the touch colour display or the mobile apps
- Control your farm from the mobile in your pocket
- Up to 12 irrigation systems can be controlled on one system
Flood detection features:
- Tank units can be used to detect flooding
- Mount the tank unit on the top of a post and lower the sensor into the creek/river
- Monitor the depth using the touch colour display or mobile devices
- Be alerted when the level is getting too high
- Saves having to venture out in rough conditions to monitor the level
- Allows the relocation of stock before the water level gets too high
Active repeater features:
- Solar or mains powered
- Can actively repeat all modules on your system, including other repeaters
- Multiple repeaters can be used on a system to extend the range and to overcome terrain
- Activity lights to show that the repeater is working
- Low battery light and alert (solar power issue)
- Small and light to allow for easy elevation
More features:
- A touch colour display for clear simple operation and dynamic graphical displaying of all information
- Built in Wi-Fi with worldwide cloud access and apps for both Android and Apple iPhone/iPod. Tank information can be viewed and pumps/devices can be controlled, from almost anywhere in the world
- Simple Wi-Fi connecting by using the optional single button WPS feature (a WPS compatible router/hot spot is required) or by selecting your router/hot spot name and entering the password (if secured)
- The levels of up to 16 solar powered tanks can be monitored. No wiring or battery replacement required and the battery has overcharge and overdischarge protection
- All tanks can be given a name by the user to clarify their location
- All tanks have a user settable filter timer to remind you when a filter needs cleaning or replacement
- All filters can be named by the user to remind you of the filter type or whom to contact when it needs replacing
- User adjustable low days remaining alert for each tank
- User adjustable low and high level alerts for each tank
- Arrow trend indicators to indicate a rising or falling level in the last 12 hours, which can optionally be turned off for each tank
- Automatic learning of the tanks maximum level avoids having to make any measurements of the tank depth
- Automatic learning of the user’s usage allows accurate reporting of the days remaining from 1 day to 6 months
- Abnormal usage alert (e.g. pipe burst, toilet running or a tap left on) can save the loss of a large amount of water, and can optionally be turned off for any tank that has intermittent high usage
- Abnormal usage alert for a burst pipe or major leak can be detect in as little as 5 minutes
- A tank density setting for each tank allows fluids other than water to be monitored
- The main screen has animated surface waves in the tank to indicate that the system is functioning normally
- Wireless signal strength displayed for each tank, with 6 levels
- Battery level displayed for each tank, with 5 levels including charging
- Display swiping is supported to view the previous or next tank or pump on you system
- Touch the tanks name to change the displayed tank from a list of names
- Each tank has a stored history of the last 30 days’ water level, that can be displayed as a graph
- A tank dashboard allows the monitoring of all 16 tank levels, with status and optional trend indicators, on one screen
- Up to 12 wireless pump/device units can be controlled with optional auto start and stop, based on tank levels pre-set by the user
- Up to 12 wireless irrigation systems can be controlled with up to 4 start times and a run time each. Each start time has an enable/disable option, with a disable all start times option for when irrigation is not required
- All pumps/devices can be named by the user to clarify their location or function
- All pumps/devices can be automated by tank levels or manually controlled with an optional maximum run time
- All pumps/devices can be controlled over the internet from the mobile app
- Imperial measurement option allows settings in feet and inches instead of metres
- Child lock (restricts use of the menu button and pump/device control)
- USB PC interface for the desktop version
- All tank and pump information is outputted to the USB PC interface
- Status changes are outputted to the USB PC interface
- Pumps/devices can be controlled from the USB PC interface
- Tank units have an angled solar panel for up to 60% better solar energy collection
- Tank and pump/device units have a line of sight range of over 3km
- Optional remote touch colour display. Allow the viewing and control of pumps and devices, wirelessly from another location, away from the main touch colour display
- Optional mains or solar powered repeaters allow nearly unlimited distance to any number of tank and pump modules and allows signal to be received from the trickiest of locations (signal path is blocked)
- Multiple repeaters can be used on one system to overcome difficult terrain or much longer distances, and each repeater will extend the range of all wireless devices on the system (tanks, pumps, devices & irrigation systems)
- Designed and manufactured in New Zealand to ISO9001:2015 and ISO14001:2015 standards
- All system firmware and mobile app software is created in-house to ensure full control over changes and enhancements
- Two-year fix or replace warranty (warranty page)
- Buy with confidence from this 100% New Zealand owned and operated company

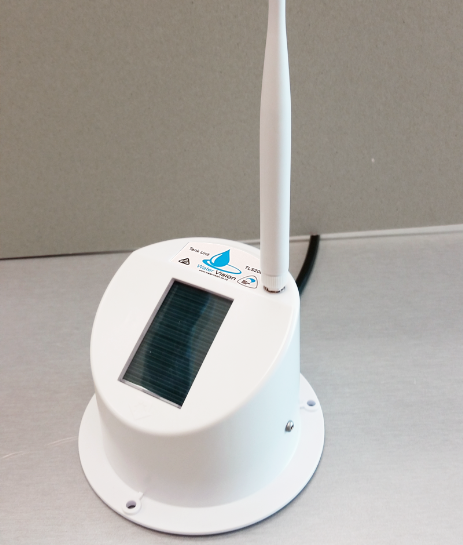

An untouched image of a tank unit that has been outside in direct sunlight for many months.
It still looks like new!
Tank Unit Installed
